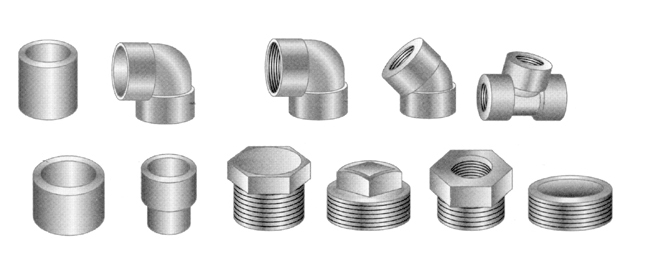

FORGED SCREW FITTINGS

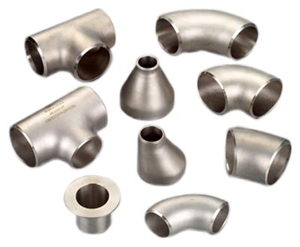

PIPE FITTINGS ( FORGED, SEAMLESS & WELDED )
PIPE FITTINGS ( FORGED, SEAMLESS & WELDED ) PIPE FITTINGS ( FORGED, SEAMLESS & WELDED )

PIPE FITTINGS ( FORGED, SEAMLESS & WELDED )
UNIQUE CORPORATION
STD'S MATERIAL

ASTM A-105, A 182 F-304/304L/316/316L/321 A-350-LF 1,LF2, LF3, A 182 F5, F7, F9, F11, F22, IS2062, IS1239, IS3589 ASTM A 234. WPA, WPB, WPC, WP1, WP5, WP7, Wp11, WP12, WP22 A 420 WPL3, WPL6, A 403 WP 304/304L/316/316L/321/347, Steam Boiler Class, Plus major "Exotic" materials i.e. Various grades Nickel, Monel, Incoloy, Hastelloy, Inconel, Cupronickel & Titanium.

DIMENSIONS

ANSI B 16.11, B16.9, B16.28, B2.1 NPT, MSS-SP-43, MSS SP-48, SP 97, B36.10

SIZES

1/2" NB TO 2" NB. FORGED ( SW & SCREWED ) VARIOUS MANUFACTURING STD. & CLASSES
1/2" NB TO 24" NB SEAMLESS PIPE FITTINGS (BW)
1/2" NB TO 72" NB WELDED BW ( ELBOWS & TEES TWO HALVES & REDUCER WITH ONE SEAM LONGITUDINAL WELDED WITH 100% R.T)

UNIQUE CORPORATION

SPECIFICATIONS


PIPE FITTINGS ( FORGED, SEAMLESS & WELDED ) - Specifications

Standard Of Welding Fittings -

900 Elbow Short Radius 900 Elbow Long Radius Cap 450 Elbow Long Radius
900 Elbow Short Radius 900 Elbow Long Radius Cap 450 Elbow Long Radius
1080 Return Long Radius 1080 Return Short Radius Reducing Outlet Tee Straight Tee
1080 Return Long Radius 1080 Return Short Radius Reducing Outlet Tee Straight Tee
Eccentric Reducer Concentric Reducer UNIQUE CORPORATION
Eccentric Reducer Concentric Reducer

Fittings are manufactured by the following specifications -

ASTM A 234 Piping fittings of wrought carbon steel and alloy steel for moderate and elevated temperatures.
ASTM A 403 Wrought austenitic stainless steel pipe fittings.
ASTN A 420 Piping fittings of wrought carbon steel and alloy steel for low-temperatures
ANSI B 16.9 Wrought steel butt-welding fittings.
ANSI B 16.25 Butt-welding ends.
ANSI B 16.28 Wrought steel butt-welding short radius elbow and returns.
MSS SP - 43 Wrought stainless steel butt-welding fittings
MSS SP - 48 Steel butt-welding fittings (26" and lager).
MSS SP - 59 Steel butt-welding short radius elbow and returns.
MSS DS - 11 900 and 450 elbows, size 22", 28" and 32".
ASME Section 8 Unfires pressure vessels.
ASME Section 9 Welging qualifications.
