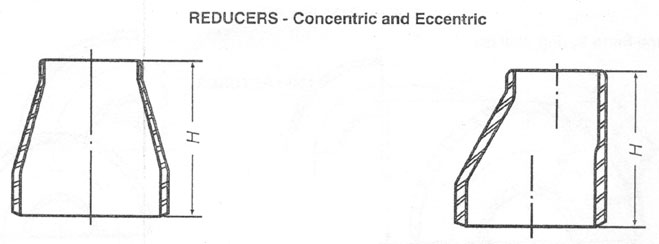

SEAMLESS BUTT WELDING FITTINGS -
| Nominal Pipe Size | End to End H | Approx. Weight (lbs) | ||||
| Large End | Small End | STD | XS | |||
| 3/4 | 1/2 | - | - | 1 1/2 | .15 | .22 |
| 1 | 3/4 | 1/2 | - | 2 | .28 | 36 |
| 1 1/4 | 1 | 3/4 | - | 2 | .38 | .50 |
| 1 1/2 | 1 1/4 | 1 1/4 | 1/2 | 2 1/2 | 57 | .76 |
| 2 | 1 1/2 | 1 1/4 | 3/4 | 3 | .90 | 1.25 |
| 2 1/2 | 2 | 1 1/2 | 1 | 3 1/2 | 1.70 | 2.23 |
| 3 | 2 1/2 | 2 | 1 1/4 | 3 1/2 | 2.20 | 2.99 |
| 31/2 | 3 | 2 1/2 | 1 1/2 | 4 | 3.00 | 4.16 |
| 4 | 2 1/2 | 3 | 2 | 4 | 3.60 | 5.00 |
| 5 | 4 | 3 1/2 | 2 1/2 | 5 | 6.10 | 8.56 |
| 6 | 5 | 4 | 3 | 5 1/2 | 8.70 | 13.1 |
| 8 | 6 | 5 | 3 1/2 | 6 | 14.30 | 21.7 |
| 10 | 8 | 6 | 4 | 7 | 23.6 | 31.9 |
| 12 | 10 | 8 | 5 | 8 | 33.1 | 43.6 |
| 14 | 12 | 10 | - | 13 | 59.2 | 78.3 |
| 16 | 14 | 12 | - | 14 | 73.0 | 97.0 |
|
|
